The Romans had a great idea... and a simple one at that. A well compacted sub base of limestone or line and gravel, covered with tight fitting cut stone for a wearing surface. It was an excellent and economical travelway. And some are still in use. We call it the Romans Road. Today, paving stone is taking the American scene by strom! Europeans have used them for years for an infinite variety of applications... sidewalks, parking lots, pedestrian crosswalks, driveways, bicycle paths, patios, swimming pool decks, shopping malls, embankment walls, slope paving, industrial floors, loading docks and more. |
|
|
|
|
Shape of Block | Uniregular/Unidecor/Brick Paver |
Compressive Strength | 200 Kgs./Centimeter2 |
Dimensions (actual size) | 225 x 112.5 x 60 mm - Uniregular 137 x 87 x 60 mm Unidecor 200 x 100 x 60 mm - Brick Paver |
Tolerence | + or - 3 mm |
Weight of block | 3.2 Kgs. (approx) |
No.of Blocks per Sft | 3.70 Blocks (approx) Uniregular/Unidecor 4.70 Blocks (approx) (Brick Paver) |
Surface Texture | Smooth or rough with chamfered edge all around. |
Colour | Grey, teracota, Red, Yellow, Black and an request any other colour. |
Laying Specifications | Interlocking
Blocks are laid on wet compacted or repared ground. Natural
sand of 50 mm thick is spread and screened to the required level. The blocks will be laid on this sand bed and compacted by vibarting plate compactor. |
Castle |
Unidecor |
Hexagon |
Classic |
|
|
Laying Pavement: Laying interlocking
block requires very little ground preparation.
|
|
6.
Spread fine sand on the top of compacted area and compact again as dry
sand over the surface to fill all the joints thoroughly.
7. To finish, brush off excess sand on the top surface. The area now is ready for use. |

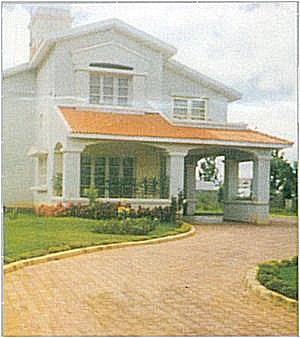

Beauty
that's forever lasting : Pavers India blocks are available in a
range of shapes and patterns designed to make your driveways, pathways
or pavements a designer master piece.
Unlimitted Applications : From Zebra crossing on roads, driveways, parking lots, pathways, loading docks, gardens, public places, railway platforms patios,plazas,terraces to pavements, the applications and applications bring out the creativity of any artist and touch a chord in even a lay man's heart. Designed to take the touch with the soft : These blocks that can be used light and heavy applications as the inter locking blocks spread the load over a wide area to with stand heavy impacts. Designed to take the touch with the soft : Unbelievable but true! These blocks have much more than meets the eye. They can be laid out in a few hours and can be used immediately. It drastically reduces the time spent on laying a road unlike that of concrete where it to be cured and set before it is ready of use. Get
more than what you bargained for : When you switch over to Pavers
India blocks you can be sure of getting more value for your money. Made
from modern technology these blocks are elegant and long lasting with zero
maintainance. In the long run your roads will be just as new and bright
as they were, when laid. With minimal cost when compared to concrete than
what you bargained for.
|
|
|
1. L &
T Andhra Pradesh Cement Plant, Thadapatri.
Architect : M/s. C.R. Narayanarao. 2. HI - TEC CITY CYBER TOWER, Hyderabad. 3. CODISSIA INTECH TECHNOLOGY CENTRE, Coimbatore. 4. SUNDARAM MOTORS, Mount Road, Chennai. 5. L & T HEAD QUARTERS, Chennai. 6.PPN POWER PROJECT, Thirukkadaiyur. 7.HYUNDAI Car Factory, Irunkattukottai, Sriperumbudur. Architect : M/s. C.R. Narayanarao. 8. MRF FACTORY, Kottayam. 9. ICICI KNOWLEDGE PARK, Hyderabad. 10.MRF TRAINING CENTRE, Kottayam. |
